Breaker box
01/23/18 at 22:23:40
Print Post
Hi, Is it a good move to put a reset fuse on the wire going from the battery to the ign switch? If so how many amps fuse do I need? It is a 12 volt system on a cj3a with a cj3b engine. Thanks for any help. Al.

Back to top

IP Logged

1955CJ-5
Flatfender Master
2013 Sponsor Member
2016 Sponsor Member
2015 Sponsor Member
*****
Offline


It wasn't always green....

Posts: 2338
Location: Boise, idaho
Joined: 12/18/12
Gender: Male
Re: Breaker box
Reply #1 - 01/24/18 at 01:13:26
Print Post

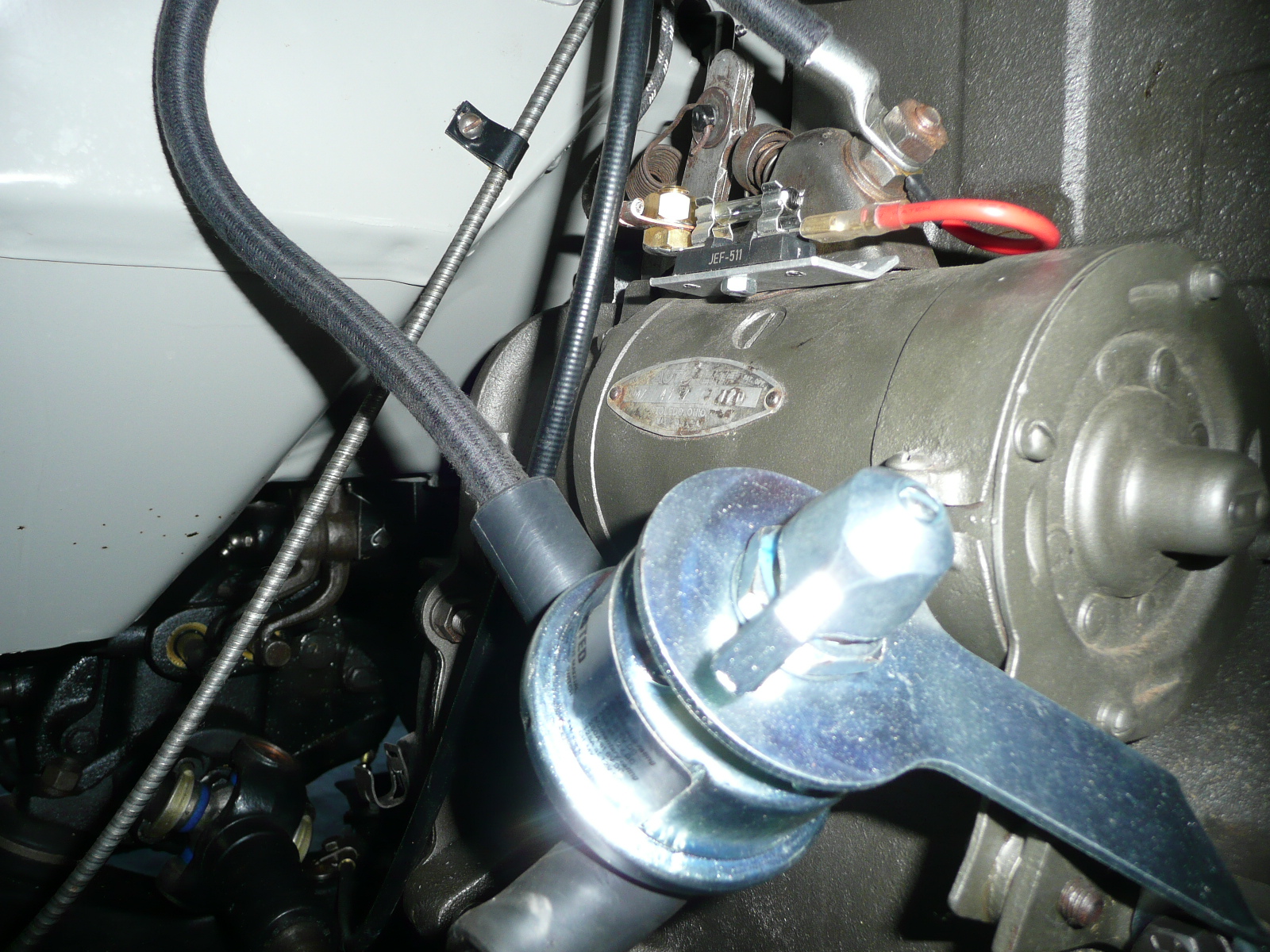

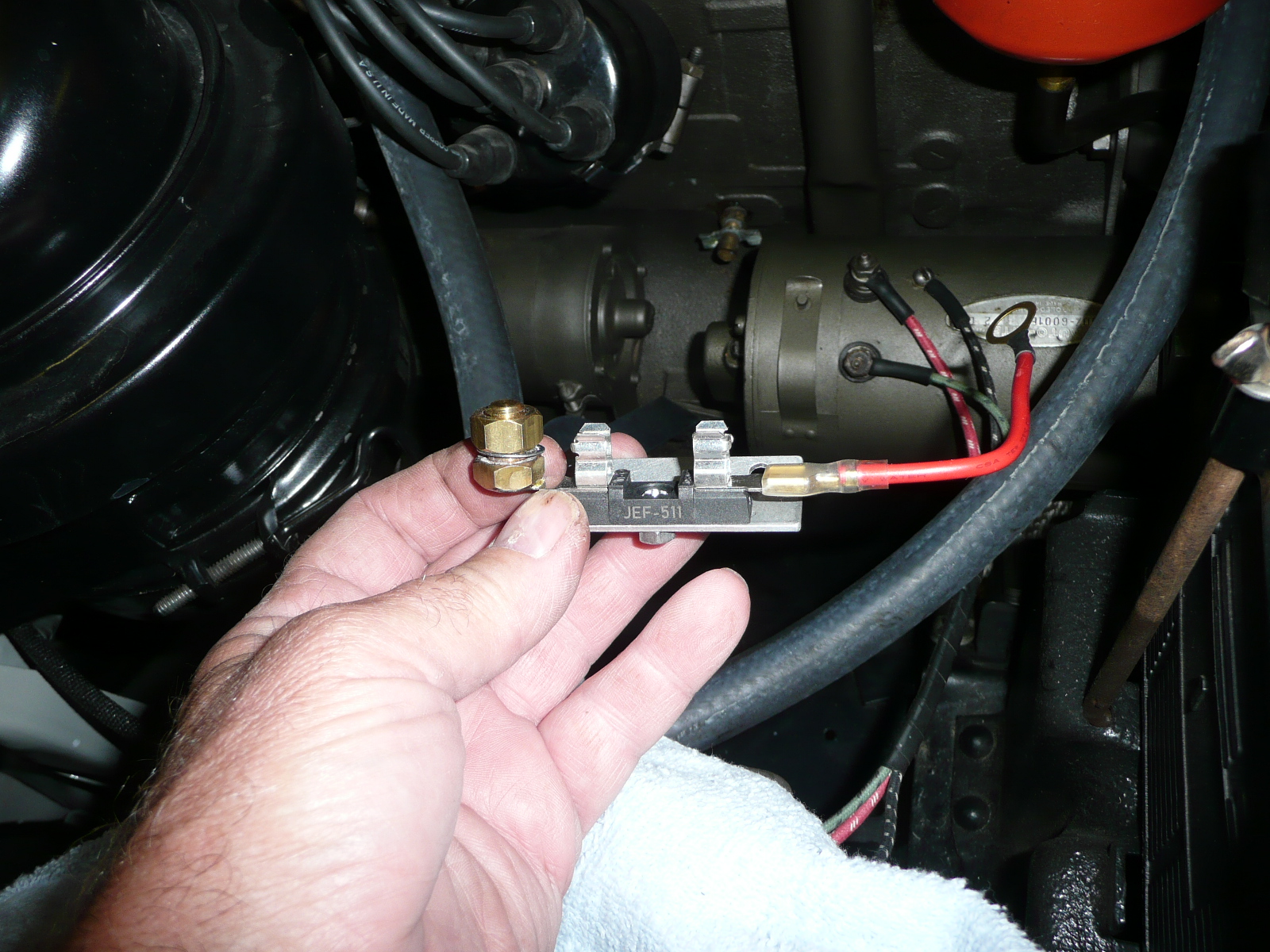

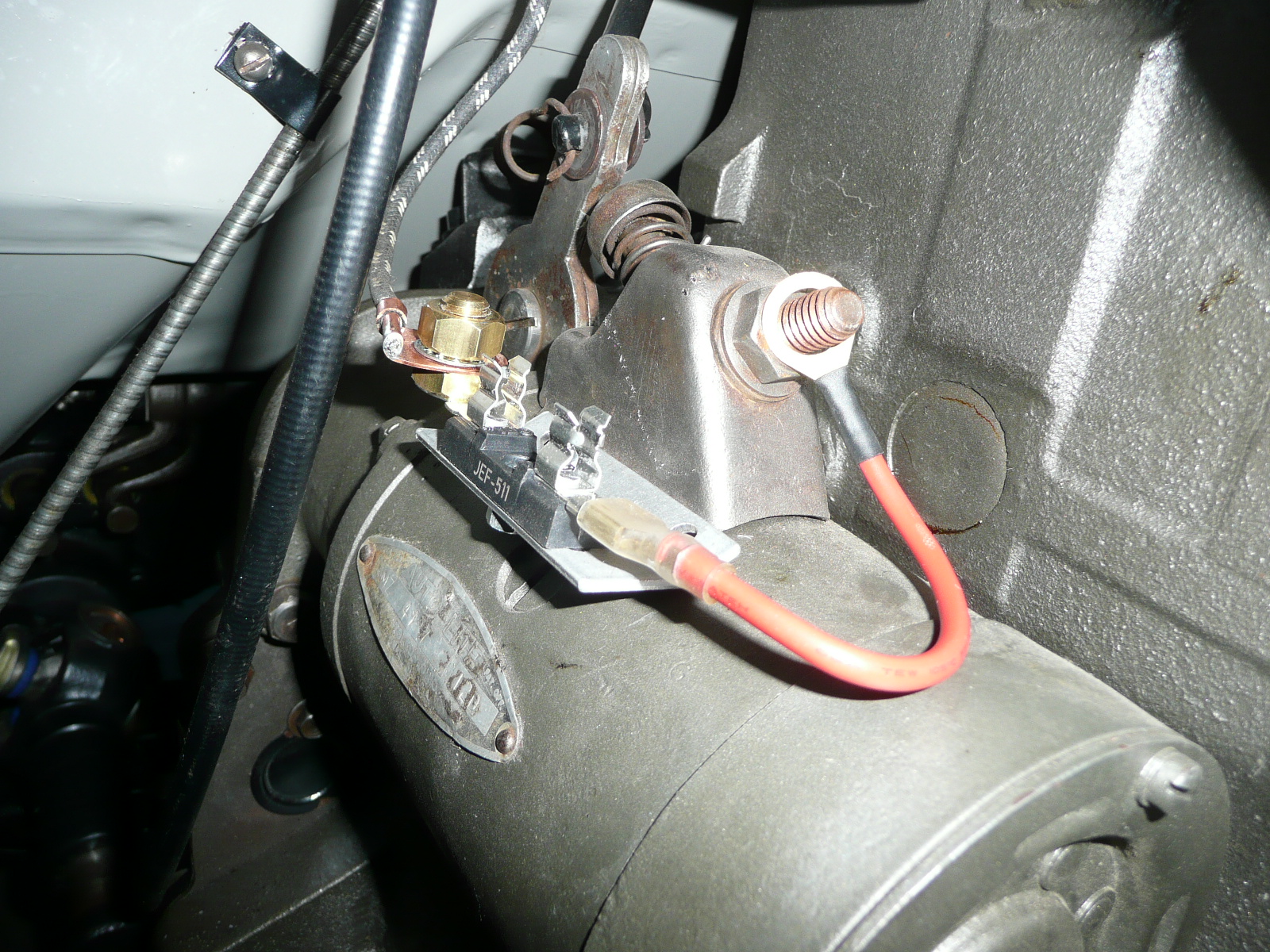

I put a fuse holder in the main feed to the electrical system. This one mounts on the starter. I also put a master cut-out switch in the starter to battery cable.

I use a 30 amp fuse. It's never blown, but I carry spares of course. I have a auto-reset 30 amp breaker that clips into the fuse holder and when I find it will give it a try....

Some day I'm going to change it to an in-line waterproof spade type fuse holder.

I think it's a good idea, as smoke is your only indication of a dead short in a non-fused system Smiley
« Last Edit: 01/24/18 at 02:10:38 by 1955CJ-5 »
1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
Back to top

IP Logged

Linda
Project Jeep
*
Offline


Still Plays With Jeeps

Posts: 49
Location: Chico Calif.
Joined: 08/11/15
Gender: Male
Re: Breaker box
Reply #2 - 01/25/18 at 22:55:34
Print Post
Thanks for your help, I' ll give it a try. Pictures are worth a 1000 words. Thanks again Al

Back to top

IP Logged

1955CJ-5
Flatfender Master
2013 Sponsor Member
2016 Sponsor Member
2015 Sponsor Member
*****
Offline


It wasn't always green....

Posts: 2338
Location: Boise, idaho
Joined: 12/18/12
Gender: Male
Re: Breaker box
Reply #3 - 01/26/18 at 00:35:20
Print Post

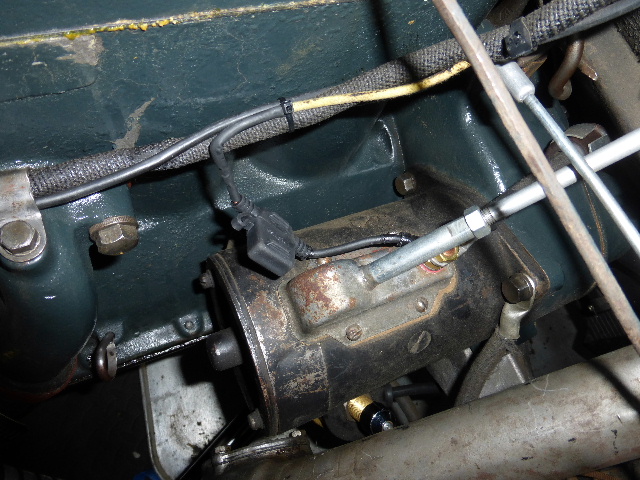

Here is a picture of the in-line spade fuse holder I put in the Model A Ford circuit. The setup is similar. I plan to do this to the 3a also. I don't know if circuit breakers will fit this type holder, but it's supposed to be water proof....I got this one at O'reillys....
