1950 cj-3a restoration mostly stock with kubota
02/08/15 at 20:42:04
Print Post
I just started the restoration of my 1950 cj-3a finally after owning it for 8 or 9 years.  it will be a complete restoration down to the bare frame.  I plan on keeping it mostly stock, but I will be installing a 2.4 liter Kubota turbo Diesel.  I will also add some things to strengthen it a bit, and I will be installing lock-right lockers in the diffs.  so far, I plan to leave the stock T-90 transmission, but I would like to swap it for a T-98 4 speed, if it will fit the Kubota adapter plate, and if I don't have to make to many modifications to make it fit the jeep.  info and tips are always appreciated.
« Last Edit: 03/09/15 at 01:39:53 by corpsman »
1950 cj-3a (currently under full restoration)
Back to top

IP Logged

corpsman
3A Guru
****
Offline


Still Plays With Jeeps

Posts: 216
Location: Nashville, TN
Joined: 02/06/15
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #1 - 02/08/15 at 20:46:50
Print Post

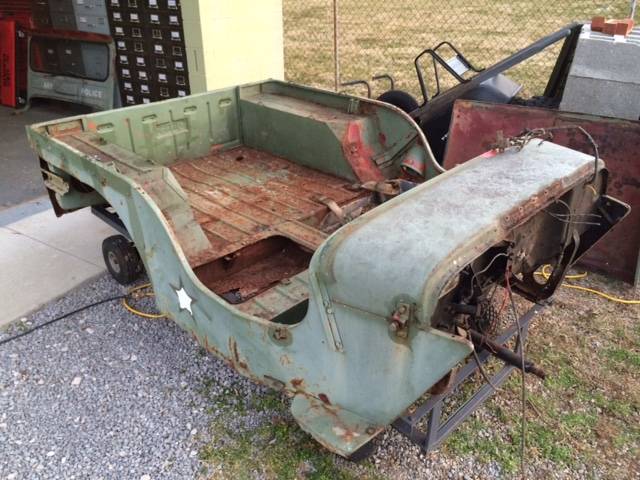

work in progress...

1950 cj-3a (currently under full restoration)
Back to top

IP Logged

corpsman
3A Guru
****
Offline


Still Plays With Jeeps

Posts: 216
Location: Nashville, TN
Joined: 02/06/15
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #2 - 02/08/15 at 20:47:37
Print Post

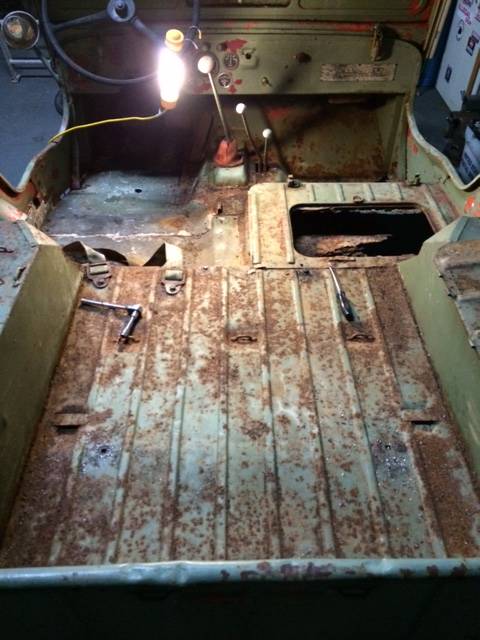

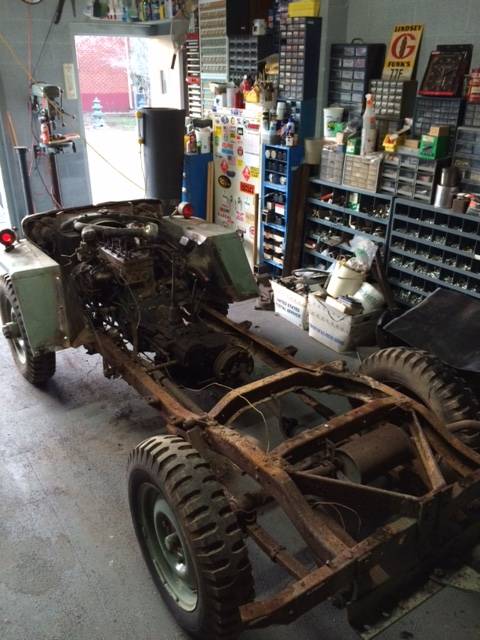

more pics

1950 cj-3a (currently under full restoration)
Back to top

IP Logged

corpsman
3A Guru
****
Offline


Still Plays With Jeeps

Posts: 216
Location: Nashville, TN
Joined: 02/06/15
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #3 - 02/08/15 at 20:48:32
Print Post

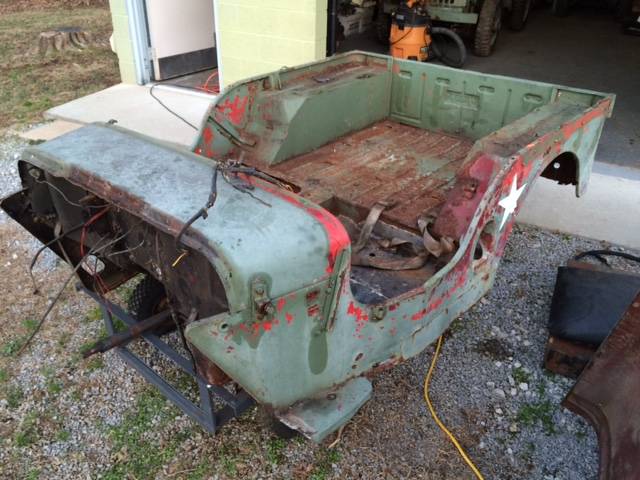

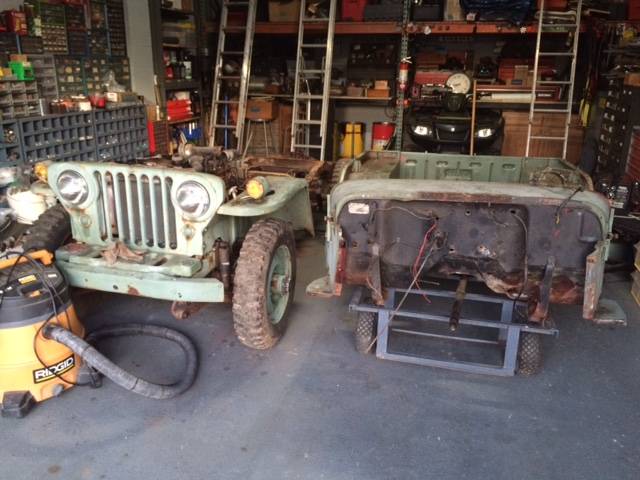

and more...

1950 cj-3a (currently under full restoration)
Back to top

IP Logged

Quebec Jeep
YaBB Administrator
Owner Member 2012
2016 Sponsor Member
2015 Sponsor Member
*****
Offline


CJ-3A 1950

Posts: 1192
Location: Quebec, Canada
Joined: 06/16/12
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #4 - 02/09/15 at 00:33:32
Print Post
Nice pics.

T98 is rare. You might be more lucky with a T18.

We have a post here about the Kubota swap.

I'm jeepcoholic!
Back to top
WWWFacebookYouTube
IP Logged

corpsman
3A Guru
****
Offline


Still Plays With Jeeps

Posts: 216
Location: Nashville, TN
Joined: 02/06/15
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #5 - 02/09/15 at 01:19:41
Print Post
Quebec Jeep wrote on 02/09/15 at 00:33:32:
Nice pics.

T98 is rare. You might be more lucky with a T18.

We have a post here about the Kubota swap.

I may have mis-spoken.  mine might have a T-18.  I'm not sure.  it has whatever came with the stock cj-3a in 1950.  whatever it is, it's a 3-speed.  I was thinking it would be good to have a 4-speed since I'm going with the Kubota.  assuming I could find a 4-speed that will mate up to the adapter plate and the transfer case with no problems.  thanks for letting me know, but I did check out the thread about the Kubota diesel.  it had some good info, and that is exactly what I'm planning on doing.

1950 cj-3a (currently under full restoration)
Back to top

IP Logged

garage gnome
Flatfender Master
2013 Sponsor Member
*****
Offline


Rustologist

Posts: 1931
Location: Chester
Joined: 02/16/12
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #6 - 02/09/15 at 03:31:47
Print Post
Your tranny is a T90 and the transferase is a Dana 18. A T18 is a heavy duty 4 speed and the T98 is an older version of the T18.

Nate in Western MA 1953 3A #3268, The Jalopy, '47 2A Wheelin' rig, '49 3A, #37071, unmolested, bone stock named Ted
Back to top

IP Logged

corpsman
3A Guru
****
Offline


Still Plays With Jeeps

Posts: 216
Location: Nashville, TN
Joined: 02/06/15
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #7 - 02/09/15 at 04:23:10
Print Post
garage gnome wrote on 02/09/15 at 03:31:47:
Your tranny is a T90 and the transferase is a Dana 18. A T18 is a heavy duty 4 speed and the T98 is an older version of the T18.

thanks a bunch for the info.  I was looking a few minutes ago, and I did see the model on the side of the transmission. (T90, like you said)  so, would the T18 be a direct replacement?  If not, does it lend itself to an easy swap?  I would love to have a more heavy duty transmission with that extra gear.

1950 cj-3a (currently under full restoration)
Back to top

IP Logged

corpsman
3A Guru
****
Offline


Still Plays With Jeeps

Posts: 216
Location: Nashville, TN
Joined: 02/06/15
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #8 - 02/09/15 at 04:24:42
Print Post
didn't have time to do a lot today.  I removed the linkage and cable for the throw out bearing.  I removed the linkage and arms for the clutch and brake.  I removed the brake master cylinder.  removed the steering box and the arm from the box to the pitman arm.  also removed the rear driveshaft.  there might have been another thing or 2, but nothing major.

1950 cj-3a (currently under full restoration)
Back to top

IP Logged

garage gnome
Flatfender Master
2013 Sponsor Member
*****
Offline


Rustologist

Posts: 1931
Location: Chester
Joined: 02/16/12
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #9 - 02/09/15 at 13:02:11
Print Post
corpsman wrote on 02/09/15 at 04:23:10:
garage gnome wrote on 02/09/15 at 03:31:47:
Your tranny is a T90 and the transferase is a Dana 18. A T18 is a heavy duty 4 speed and the T98 is an older version of the T18.

thanks a bunch for the info.  I was looking a few minutes ago, and I did see the model on the side of the transmission. (T90, like you said)  so, would the T18 be a direct replacement?  If not, does it lend itself to an easy swap?  I would love to have a more heavy duty transmission with that extra gear.


No. You will have to find a T98 from a CJ5 with a 4cyl with all the factory adaptors and driveshafts. That is a direct bolt in, but they are pretty hard to find.

If you can't find a T98, keep an eye out for a T15. They are the strongest of the 3 speeds. They were used in 72-75 CJ5s.
« Last Edit: 02/09/15 at 13:09:19 by garage gnome »
Nate in Western MA 1953 3A #3268, The Jalopy, '47 2A Wheelin' rig, '49 3A, #37071, unmolested, bone stock named Ted
Back to top

IP Logged

Quebec Jeep
YaBB Administrator
Owner Member 2012
2016 Sponsor Member
2015 Sponsor Member
*****
Offline


CJ-3A 1950

Posts: 1192
Location: Quebec, Canada
Joined: 06/16/12
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #10 - 02/09/15 at 14:11:50
Print Post
You can find a T98 into some M38A1 also. It was also used in some ford and IH scout.

Check those sites for more info about adaptor:

http://www.advanceadapters.com/tech-vault/jeep-t98/
http://www.novak-adapt.com/knowledge/t98.htm

My CJ-5 perkins diesel jeep came with a T98. I think it was an option but I'm not sure.


EDITED
I found the original post about kubota swap. They are using the T90.

http://www.cj3apage.com/cgi-bin/3Ayabb26/YaBB.pl?num=1364319832/0#0

The one pictured in their ads has an overdrive.
« Last Edit: 02/09/15 at 14:23:37 by Quebec Jeep »
I'm jeepcoholic!
Back to top
WWWFacebookYouTube
IP Logged

garage gnome
Flatfender Master
2013 Sponsor Member
*****
Offline


Rustologist

Posts: 1931
Location: Chester
Joined: 02/16/12
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #11 - 02/09/15 at 18:13:43
Print Post
The ones in the IH and fords will have a longer input shaft. That's why you need to use one from a CJ5 with a 4cyl.

Nate in Western MA 1953 3A #3268, The Jalopy, '47 2A Wheelin' rig, '49 3A, #37071, unmolested, bone stock named Ted
Back to top

IP Logged

johnrb3b
YaBB Administrator
Owner Member 2012
*****
Offline


No such thing as too many
Jeeps

Posts: 900
Location: West burbs of Chicago
Joined: 08/05/11
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #12 - 02/09/15 at 20:10:22
Print Post
It's much easier to stay with the T-90 and add an overdrive. Then you can go with low ratio axles - 5.38 - and end up with a decent crawl ratio and still run at fairly good road speeds without running the RPM to high.

The only thing you don't get is a true "granny" low.

Another advantage of that solution is that you now effectively have a close ratio 6-speed because you can use the overdrive in any of the three gears and even reverse. I would assume that many gears would go nicely with a diesel.
« Last Edit: 02/09/15 at 20:11:33 by johnrb3b »
1946 2A - - - 1949 me - older than most of my Jeeps
1954 3B - - - 1957 Wagon - - - 2010 4-door JK
past Jeeps ---> '54 3B - no tub --- '59 3B - no engine
past addiction - VW ---> '69 bus --- '70 camper --- '84 camper
Back to top

IP Logged

corpsman
3A Guru
****
Offline


Still Plays With Jeeps

Posts: 216
Location: Nashville, TN
Joined: 02/06/15
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #13 - 02/09/15 at 22:10:40
Print Post
thanks for all the great info, guys.  now I'm really interested in an over-drive.  I can answer just about any question about a Suzuki samurai, but I'm new to this cj game.  can anyone give me any info on what I need to do to add an over drive.  how is this accomplished?  I'm assuming the over drive unit shown in their advertisement, is the new looking thing bolted onto the back of the transfer case just behind the transmission??  sorry for the ignorance on the subject.
« Last Edit: 02/09/15 at 22:15:04 by corpsman »
1950 cj-3a (currently under full restoration)
Back to top

IP Logged

Quebec Jeep
YaBB Administrator
Owner Member 2012
2016 Sponsor Member
2015 Sponsor Member
*****
Offline


CJ-3A 1950

Posts: 1192
Location: Quebec, Canada
Joined: 06/16/12
Gender: Male
Re: 1950 cj-3a restoration mostly stock with kubota
Reply #14 - 02/09/15 at 22:19:57
Print Post
Herm is the overdrive guy!

http://hermtheoverdriveguy.com

You can also check the our website. Jonathan did put a lot of great info about it;

Here is about the installation ;

http://www.cj3apage.com/index/My_1950/installing_an_overdrive.htm

Enjoy!
