Wanted: 9" brake drum (stock style) (Read 6594 times)

squidtone 3A Guru Offline Still Plays With Jeeps Posts: 344 Location: CT Joined: 12/08/10 Gender:	Wanted: 9" brake drum (stock style) 01/15/15 at 18:19:54	Print Post
	Hi all, I've deconstructed my 50 cj3a project including the brakes...but one of my rear drums is bent from a stud replacement gone bad by a previous owner. Im wondering if anyone would have a single 9" brake drum they would sell. Its the kind that is behind the wheel hub, and the ones i have have the feeler guage slot. I'd prefer one that is clean enough and straight enough to not need turning...(last time i tried to get drums turned was a bad experience) Thankyou. dave miles

	Dave Miles Presently: 03 Rubicon, 50 CJ3A Past: 01 XJ Cherokee, 87 XJ Cherokee, 85 XJ Cherokee, 83 CJ8, 81 CJ7
	WWW IP Logged

Ryan_M Flatfender Master Owner Member 2012 2016 Sponsor Member 2015 Sponsor Member Offline Posts: 1695 Location: Glenburn, ME Joined: 12/29/11 Gender:	Re: Wanted: 9" brake drum (stock style) Reply #1 - 01/15/15 at 19:04:02	Print Post
	I probably have one. I'll do some rummaging in the next day or two and let you know. EDIT: I checked my stash and the only drum I have left is so beat up it wouldn't even be worth shipping it to you.
	« Last Edit: 01/15/15 at 21:41:20 by Ryan_M »
	Current: '49 CJ3A '51 CJ3A '42 Willys MB-T '47 Bantam T3-C Previous: '46 2A '51 3A '52 3A '52 M38 '54 3B East Coast Willys Association
	WWW Facebook IP Logged

JeepFever 3A Guru Offline '2A trail/work - '3A project Posts: 250 Location: Virginia Joined: 10/17/14	Re: Wanted: 9" brake drum (stock style) Reply #2 - 01/16/15 at 03:23:04	Print Post
	. Would this be same as '46 '2A ? If so, I might have a spare.


	IP Logged

squidtone 3A Guru Offline Still Plays With Jeeps Posts: 344 Location: CT Joined: 12/08/10 Gender:	Re: Wanted: 9" brake drum (stock style) Reply #3 - 01/16/15 at 12:49:18	Print Post

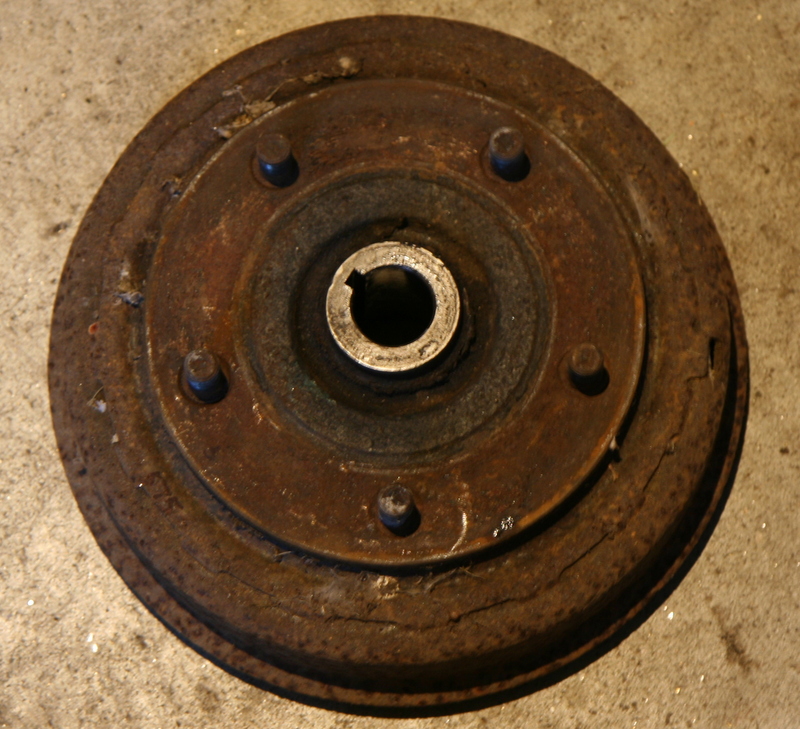

	Ryan_M, Thanks very much for looking. Jeepfever, Gee I think they're the same. (I just looked on Walcks, they list the drums as the same for MB, CJ2a, CJ3a...) Here's a picture of my drum. Note how the drum is behind the hub. Note the feeler gauge slot at the 9 o'clock position. Unfortunately the only way to remove the drum from the hub (front or back) on this style is to press the studs out...I could do that and return hub if necessary. Thanks for taking a look... Dave (squidtone)
	« Last Edit: 01/16/15 at 13:00:35 by squidtone »
	IMG_07230.JPG ( 346 KB \| 92 Downloads ) Dave Miles Presently: 03 Rubicon, 50 CJ3A Past: 01 XJ Cherokee, 87 XJ Cherokee, 85 XJ Cherokee, 83 CJ8, 81 CJ7
	WWW IP Logged

Quebec Jeep YaBB Administrator Owner Member 2012 2016 Sponsor Member 2015 Sponsor Member Offline CJ-3A 1950 Posts: 1192 Location: Quebec, Canada Joined: 06/16/12 Gender:	Re: Wanted: 9" brake drum (stock style) Reply #4 - 01/16/15 at 13:08:26	Print Post
	To remove the hub from the drum, you need to press the stud after you unswaged it. If you try to press the stud without unswage it before, you can bend the drum.
	« Last Edit: 01/16/15 at 15:08:35 by Quebec Jeep » Reason: Added a doc file about swaging process
	Wheel_stud_swaging_001.docx ( 549 KB \| 85 Downloads ) I'm jeepcoholic!
	WWW Facebook YouTube IP Logged

squidtone 3A Guru Offline Still Plays With Jeeps Posts: 344 Location: CT Joined: 12/08/10 Gender:	Re: Wanted: 9" brake drum (stock style) Reply #5 - 01/16/15 at 14:49:20	Print Post
	QJ, I see what you're saying...I just looked at the universal manual for CJ's and there is a cross section view in the wheel section and it does plainly show the stud swageing. So in order to prevent damage (which I see now is exactly what happened to the drum I have now by the previous owner), I was thinking of maybe milling/drilling the heads off the studs and just pressing them through the opposite way...some folks seem to say that's best...then buy new studs. Anyway, I know new drums are available, so I'll keep that as my fall back plan. I'll scan craigslist too...

	Dave Miles Presently: 03 Rubicon, 50 CJ3A Past: 01 XJ Cherokee, 87 XJ Cherokee, 85 XJ Cherokee, 83 CJ8, 81 CJ7
	WWW IP Logged

JeepFever 3A Guru Offline '2A trail/work - '3A project Posts: 250 Location: Virginia Joined: 10/17/14	Re: Wanted: 9" brake drum (stock style) Reply #6 - 01/18/15 at 01:33:58	Print Post
	With this talk of studs, brings up a question. Are you needing LH or RH threads? I would not need the hub returned, so no need to remove studs. I forgot to check my stash today.


	IP Logged

squidtone 3A Guru Offline Still Plays With Jeeps Posts: 344 Location: CT Joined: 12/08/10 Gender:	Re: Wanted: 9" brake drum (stock style) Reply #7 - 01/18/15 at 04:08:54	Print Post
	It happens to be the rear left, so left hand threads. No big deal if LH or RH however... Thanks

	Dave Miles Presently: 03 Rubicon, 50 CJ3A Past: 01 XJ Cherokee, 87 XJ Cherokee, 85 XJ Cherokee, 83 CJ8, 81 CJ7
	WWW IP Logged

JeepFever 3A Guru Offline '2A trail/work - '3A project Posts: 250 Location: Virginia Joined: 10/17/14	Re: Wanted: 9" brake drum (stock style) Reply #8 - 01/18/15 at 05:46:26	Print Post
	Hopefully I have not spoken too soon, (that I have a spare for you) . I just took a quick look at collection. I knew that I had 4 hub/drum assemblies, and assumed that they all came from '2A when I swapped to 11" brakes approx 20 years ago. But the 4 assemblies I have are all for the front . . 2 of those must be from my '2A, but not sure what the other two are. . I also have 2 drum-only's. None of these drums have the feeler gage slot shown in your photo. Are the drums interchangeable from front to back? If so, I may have what you need. (if you don't necessarily need the feeler gage slot. I can post photos if you are still interested. If any of these fit, my price is very reasonable - > no charge, but you pay shipping.


	IP Logged

squidtone 3A Guru Offline Still Plays With Jeeps Posts: 344 Location: CT Joined: 12/08/10 Gender:	Re: Wanted: 9" brake drum (stock style) Reply #9 - 01/18/15 at 14:21:38	Print Post
	JeepFever, Yes they are interchangable from front to back, it's a matter of taking out the studs and removing the hub, then swapping on the appropriate front or rear hub. I can do that (I just bought a press, wow I love that thing). Also, no feeler gauge hole is no big deal. There are procedures to adjust brakes without feeler gauges. If one of those is 9", I think it will work for me. That's a very kind offer, and i'd gladly pay whatever you need for shipping/handling. Let me know... and thanks.

	Dave Miles Presently: 03 Rubicon, 50 CJ3A Past: 01 XJ Cherokee, 87 XJ Cherokee, 85 XJ Cherokee, 83 CJ8, 81 CJ7
	WWW IP Logged

JeepFever 3A Guru Offline '2A trail/work - '3A project Posts: 250 Location: Virginia Joined: 10/17/14	Re: Wanted: 9" brake drum (stock style) Reply #10 - 01/18/15 at 19:54:06	Print Post
	This is what I have. Those drum-onlys do not look like the right style. If the fronts are what you need I can send one. Let me know if you need photo from different angle etc. They are 9", the camera angle makes them look different sizes.

	IP Logged

squidtone 3A Guru Offline Still Plays With Jeeps Posts: 344 Location: CT Joined: 12/08/10 Gender:	Re: Wanted: 9" brake drum (stock style) Reply #11 - 01/18/15 at 20:30:48	Print Post
	JeepFever, I think I agree, the lower ones in your photo shows that it is the style that goes behind the hub, and 9" is correct too. The fact that they're front hub is not a big deal, I can swap hubs, and, if it's not a problem, if one of those front ones you are offering has LH threaded studs, I would prefer that since I can more easily do a switcheroo with the front hub/brake assy I have now (that needs new studs) and I can switch that one to the back. whew. But thanks again, if your still up for it, I'd gladly send payment/shipping...let me know. Dave

	Dave Miles Presently: 03 Rubicon, 50 CJ3A Past: 01 XJ Cherokee, 87 XJ Cherokee, 85 XJ Cherokee, 83 CJ8, 81 CJ7
	WWW IP Logged

JeepFever 3A Guru Offline '2A trail/work - '3A project Posts: 250 Location: Virginia Joined: 10/17/14	Re: Wanted: 9" brake drum (stock style) Reply #12 - 01/18/15 at 21:12:05	Print Post
	One of them is LH, that works out good, because I would prefer to keep the RH. P.m. your address. I am not sure the best way to ship, . . would "flat rate box" at the post office the best for something this heavy?


	IP Logged

squidtone 3A Guru Offline Still Plays With Jeeps Posts: 344 Location: CT Joined: 12/08/10 Gender:	Re: Wanted: 9" brake drum (stock style) Reply #13 - 01/19/15 at 01:14:02	Print Post
	PM sent..

	Dave Miles Presently: 03 Rubicon, 50 CJ3A Past: 01 XJ Cherokee, 87 XJ Cherokee, 85 XJ Cherokee, 83 CJ8, 81 CJ7
	WWW IP Logged

JeepFever 3A Guru Offline '2A trail/work - '3A project Posts: 250 Location: Virginia Joined: 10/17/14	Re: Wanted: 9" brake drum (stock style) Reply #14 - 01/24/15 at 16:41:06	Print Post
	Sent it out today by USPS Flat Rate . . Hopefully makes it thru the snow that you are getting up there. -Ron
