Transmission pulled.
12/14/15 at 18:09:03
Print Post

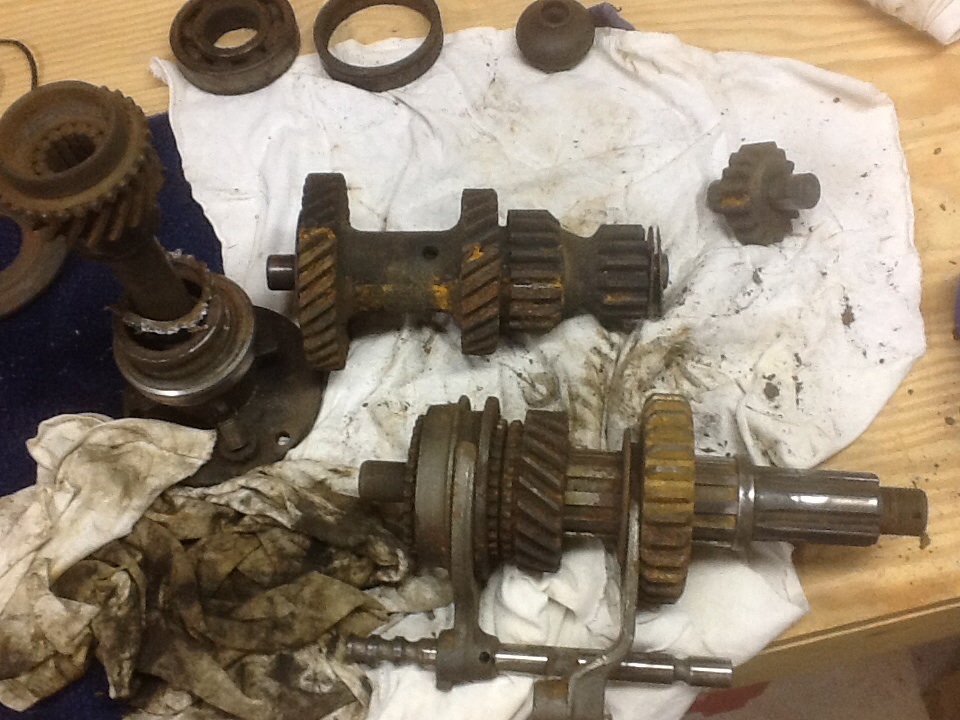

I pulled the tranny out of my 53 3a and here's what I've got. Of course with the rust and lack of fluid, and sitting in a field for twenty years, nothing moved.
After getting the gears all out and mostly apart, it looks like most of it just needs cleaning up.
Your thoughts and experiences would be most appreciated.

Vincent S.
vschleg@yahoo.com
Back to top

IP Logged

JeepFever
3A Guru
****
Offline


'2A trail/work - '3A project

Posts: 250
Location: Virginia
Joined: 10/17/14
Re: Transmission pulled.
Reply #1 - 12/14/15 at 19:33:34
Print Post
There are a lot better links to look at,   but here is a link to my build thread where Ryan posted good photos of some components . .  scroll down about half way.

http://www.cj3apage.com/cgi-bin/3Ayabb26/YaBB.pl?num=1414729355/45

Hopefully this gets you started on answers.

I was concerned the condition of mine was going to look similar to your photos,  because it sat for many years also.

Back to top

IP Logged

Dre
3A Lover
**
Offline


Still Plays With Jeeps

Posts: 53
Location: Chicago
Joined: 09/22/15
Gender: Male
Re: Transmission pulled.
Reply #2 - 12/14/15 at 23:21:11
Print Post
I was thinking about dipping it all in diesel for a few days. Mine is just the same, sitting dry in the desert heat didn't really mess things up too much... but still...
