Clutch Cross Shaft
09/11/15 at 20:29:17
Print Post

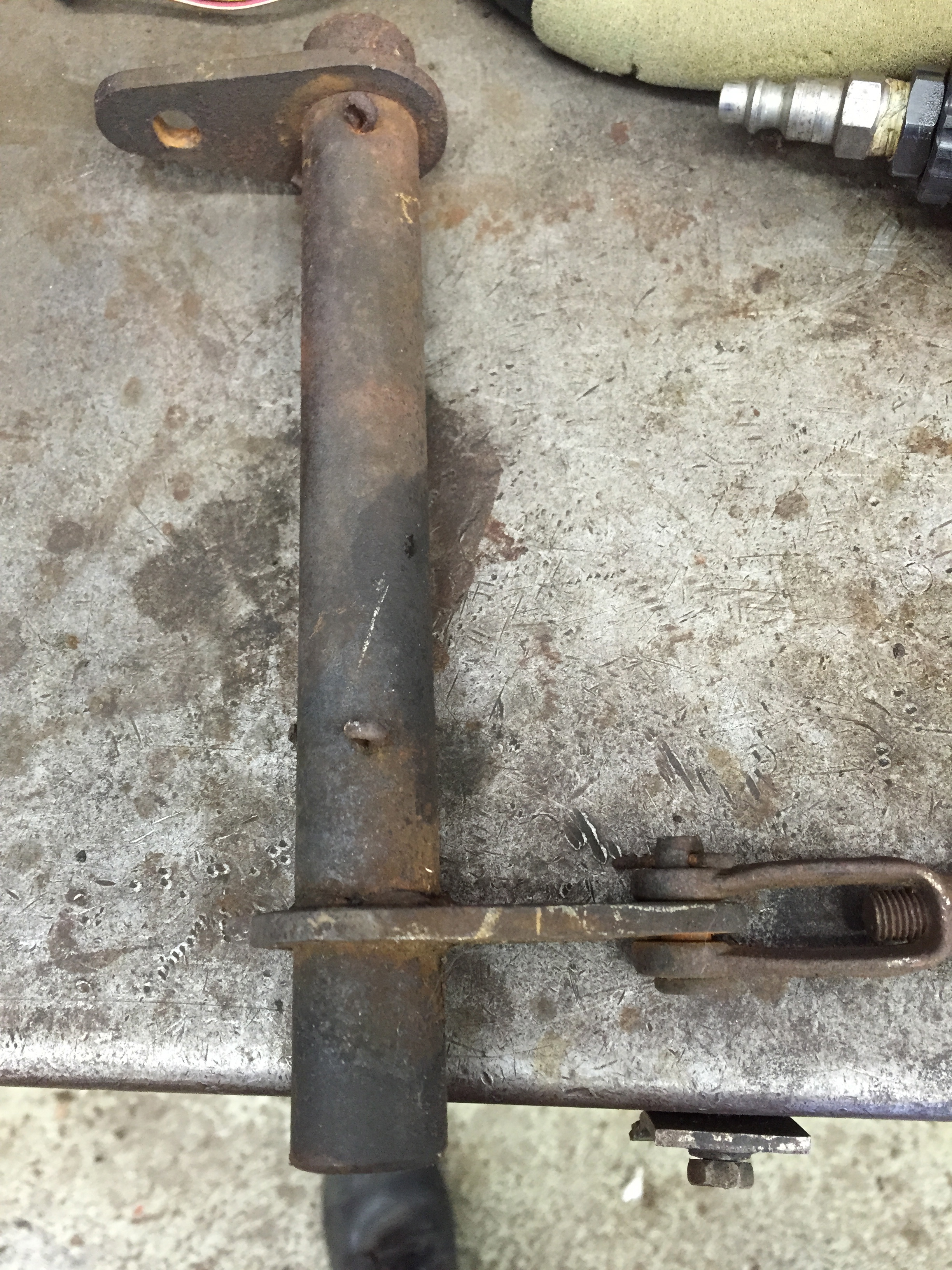

Anyone here rebuilt the Clutch Cross Shaft? One side of mine I can compress in and out, but the other is rock hard..

Any lessons learned would be helpful

Thanks in Advance
Kirk

'52 CJ-3A
Back to top

IP Logged

oldtime
Flatfender Enthusiast
***
Offline


Still Plays With Jeeps

Posts: 173
Location: Greater St Louis
Joined: 10/16/14
Re: Clutch Cross Shaft
Reply #1 - 09/11/15 at 20:55:49
Print Post
The end toward the transmission is spring loaded.
If the tube ends for the pivot ball studs are not worn; it is easily rebuild able.

Measure the distance from the tube to the CL of each lever pivot hole.
Weld the holes shut with mild steel.
Grind smooth.
Re-drill the holes to 5/16" diameter.
