Dash Board Data Plate
06/17/14 at 11:39:48
Print Post
Does anyone have layout dimensions on where to mount my dashboard data plate. I looked on line and cannot find a post on where it was from the factory.

Back to top

IP Logged

1955CJ-5
Flatfender Master
2013 Sponsor Member
2016 Sponsor Member
2015 Sponsor Member
*****
Offline


It wasn't always green....

Posts: 2338
Location: Boise, idaho
Joined: 12/18/12
Gender: Male
Re: Dash Board Data Plate
Reply #1 - 06/18/14 at 00:20:34
Print Post

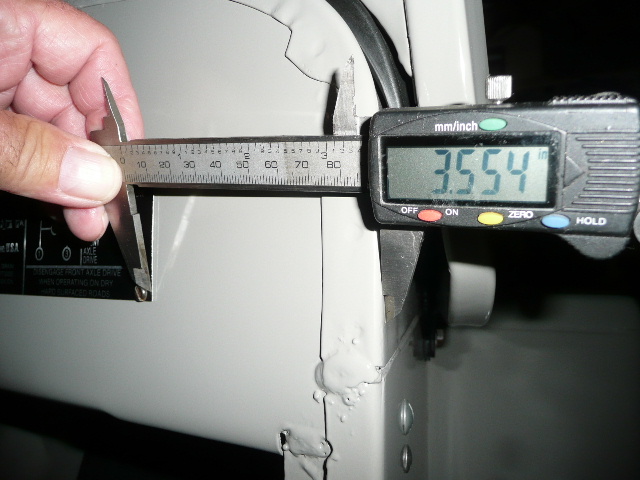

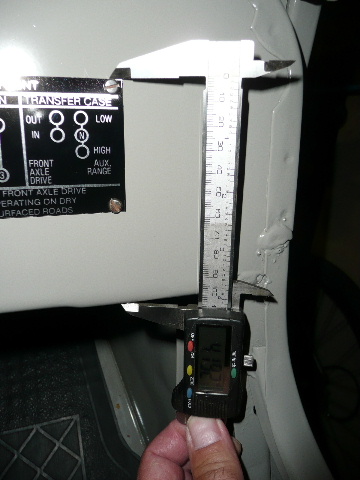

This is a repro plate but it is directly on top of the original plate, and uses the same holes....the measurement is from the edge of the plate..

Hope this helps...if you want a specific measurement just ask...

How about a couple more pictures of your jeep?
« Last Edit: 06/18/14 at 00:21:21 by 1955CJ-5 »
1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
