vacuum lines
08/18/13 at 17:32:41
Print Post
I have a stock 1952 3A and I am wanting to make sure I hook up the stock steel vacuum lines correctly.  There are two that are connected to the fuel pump with a rubber hose.  One goes to the wiper and the other to the intake manifold.

Does the line on the fuel pump that is next to the engine go to the wiper or the one near the fender side?

Thanks

Mike

Back to top

IP Logged

1955CJ-5
Flatfender Master
2013 Sponsor Member
2016 Sponsor Member
2015 Sponsor Member
*****
Offline


It wasn't always green....

Posts: 2338
Location: Boise, idaho
Joined: 12/18/12
Gender: Male
Re: vacuum lines
Reply #1 - 08/18/13 at 17:43:23
Print Post
Here is a diagram of the crankcase ventilation...

http://www.cj3a.info/tech/pcv.html

The PCV valve on the center of the intake manifold is connected to the cup on the side valve cover...

But as i read more on this there may be a line to the intake manifold as well...

Do you have pictures? I would like to see your intake manifold plumbing....
« Last Edit: 08/18/13 at 18:25:12 by 1955CJ-5 »
1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
Back to top

IP Logged

Heimbig
Project Jeep
*
Offline


Still Plays With Jeeps

Posts: 26
Location: Richland,WA
Joined: 04/16/11
Gender: Male
Re: vacuum lines
Reply #2 - 08/18/13 at 18:39:20
Print Post
The pvc line is separate, the other lines are vacuum.

Back to top

IP Logged

1955CJ-5
Flatfender Master
2013 Sponsor Member
2016 Sponsor Member
2015 Sponsor Member
*****
Offline


It wasn't always green....

Posts: 2338
Location: Boise, idaho
Joined: 12/18/12
Gender: Male
Re: vacuum lines
Reply #3 - 08/18/13 at 18:56:22
Print Post
I did not realize that one of the vacuum lines from the fuel pump was routed to the intake manifold until you brought it up.....

I've looked at my pump and the port closest to the block is marked "IN" but I'm not sure what that refers to.."intake" maybe?...the other port is not marked....

I am also in the process of re-assembling my engine....

1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
Back to top

IP Logged

Ryan_M
Flatfender Master
Owner Member 2012
2016 Sponsor Member
2015 Sponsor Member
*****
Offline



Posts: 1695
Location: Glenburn, ME
Joined: 12/29/11
Gender: Male
Re: vacuum lines
Reply #4 - 08/18/13 at 20:51:12
Print Post

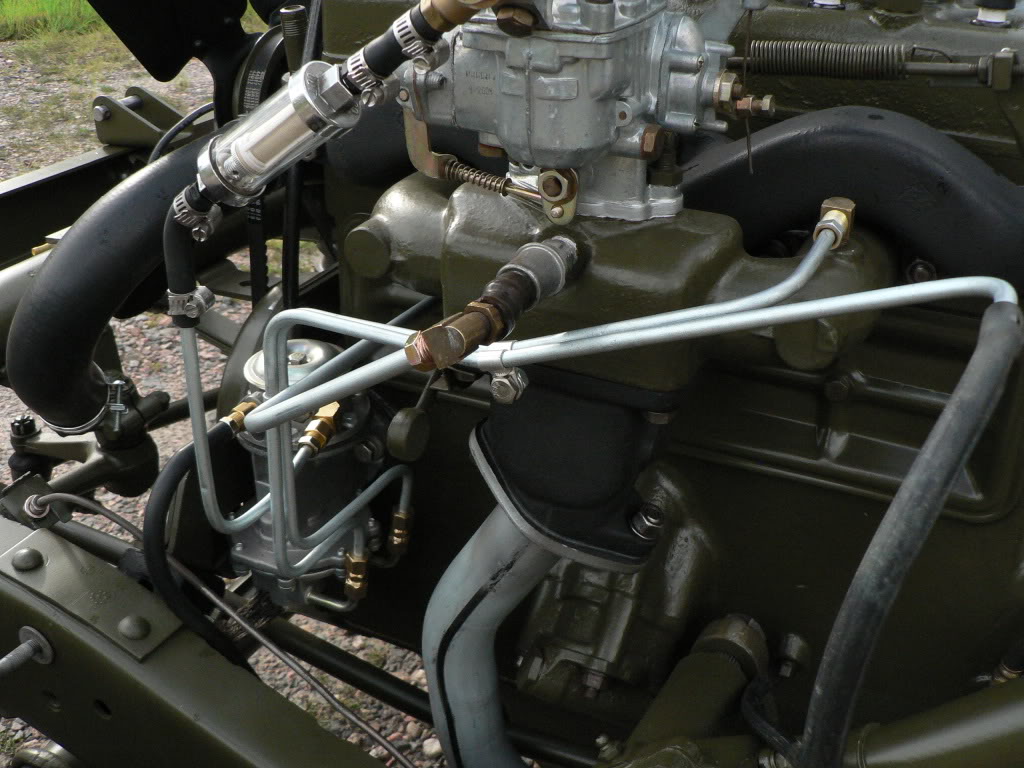

The engine-side line goes to the intake manifold and the fender-side one goes to the wipers. I'm posting one of Tim's (athawk11) pics from when I asked a similar question awhile back. His is about as clean an arrangement as you'll see anywhere.
« Last Edit: 08/19/13 at 00:25:59 by Ryan_M »
Current:
'49 CJ3A
'51 CJ3A
'42 Willys MB-T
'47 Bantam T3-C
Previous:
'46 2A
'51 3A
'52 3A
'52 M38
'54 3B
East Coast Willys Association
Back to top
WWWFacebook
IP Logged

1955CJ-5
Flatfender Master
2013 Sponsor Member
2016 Sponsor Member
2015 Sponsor Member
*****
Offline


It wasn't always green....

Posts: 2338
Location: Boise, idaho
Joined: 12/18/12
Gender: Male
Re: vacuum lines
Reply #5 - 08/19/13 at 00:19:26
Print Post
Worth a thousand words....

1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
