Normal Topic Fuel sending unit (Read 1862 times)

Adam
Project Jeep
*
Offline


'49 Willys CJ3A with 4.3l
vortec V6 T.B.I.,

Posts: 8
Location: Columbia
Joined: 07/25/13
Gender: Male
Fuel sending unit
07/26/13 at 19:26:07
Print Post
Can anyone tell me what gauge wires are used for the fuel gauge and sending unit, also the how its wired up. The wires were missing when i purchased my 3a. Thanks for any help and for taking the time

Back to top

IP Logged

garage gnome
Flatfender Master
2013 Sponsor Member
*****
Offline


Rustologist

Posts: 1931
Location: Chester
Joined: 02/16/12
Gender: Male
Re: Fuel sending unit
Reply #1 - 07/26/13 at 22:55:13
Print Post
The wire should be 14 gauge and the terminals should b marked, but I'll look at mine to be sure.

Nate in Western MA 1953 3A #3268, The Jalopy, '47 2A Wheelin' rig, '49 3A, #37071, unmolested, bone stock named Ted
Back to top

IP Logged

stony
3A Guru
****
Offline



Posts: 298
Location: Victor, NY
Joined: 07/12/13
Gender: Male
Re: Fuel sending unit
Reply #2 - 07/26/13 at 22:57:39
Print Post

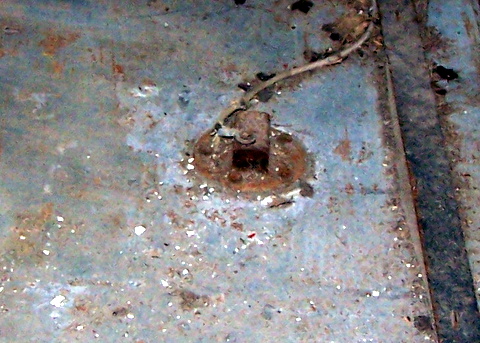

Looks like it is pretty simple  One a single wire from the terminal on the sender to the fuel gauge.  The other side of the gauge to the ignition switch.   Not sure on the original wire size, but it should only carry a very small current.
« Last Edit: 07/26/13 at 23:04:30 by stony »
Terry
1949 CJ3A  11159   body 11225 engine 11140
On preservation vs. restoration:  Roscoe Lee Brown "the Cowboys" when he met the whores on the trail:  "Well, I have the inclination, maturity, and the wherewithall... but unfortunately I don't have the time."
Back to top

IP Logged

Adam
Project Jeep
*
Offline


'49 Willys CJ3A with 4.3l
vortec V6 T.B.I.,

Posts: 8
Location: Columbia
Joined: 07/25/13
Gender: Male
Re: Fuel sending unit
Reply #3 - 07/26/13 at 23:42:15
Print Post
Thanks that helps out alot  Smiley

Back to top

IP Logged

gmcjr
Flatfender Enthusiast
***
Offline


Even a blind hog finds
a acorn every now and
then.

Posts: 168
Location: N. Texas
Joined: 11/13/12
Gender: Male
Re: Fuel sending unit
Reply #4 - 07/27/13 at 01:26:34
Print Post
The + terminal of the fuel gauge goes to a switched power source, the - terminal goes the terminal on the sender unit. It is important that the mounting flange of the sender is good and grounded to tank, (It's usually through the mounting screws or a staple in the flange gasket) and the tank is good and grounded to the body or chassis. 16 AWG wire is sufficient, the current draw is minimal, but like GG said 14 would probably be better due to being more resistant to damage. That being said my dog chewed the wire going to to sender unit in two last week!  Smiley
Hope this helps!
« Last Edit: 07/27/13 at 01:34:26 by gmcjr »
Gary in N. Texas
51 CJ-3A (old Trusty)
52 Ford 8n (ugly duckling)
46Farmall B (old Rusty)
18 Wrangler Jk
Back to top

IP Logged
