minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #15 - 08/17/12 at 23:12:57	Print Post

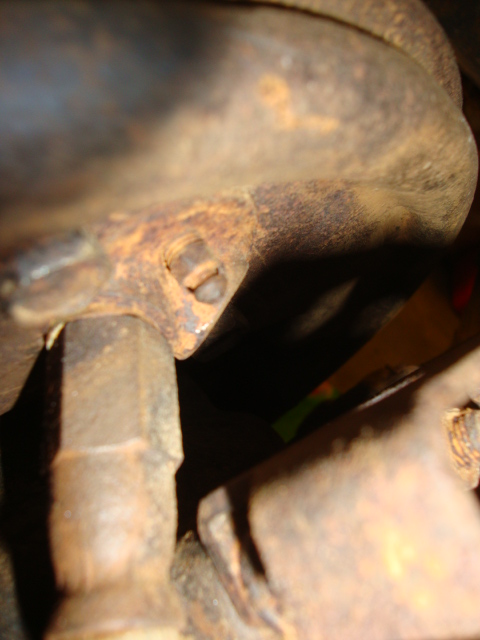

	Number four 0f eight.

	IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #16 - 08/17/12 at 23:13:30	Print Post

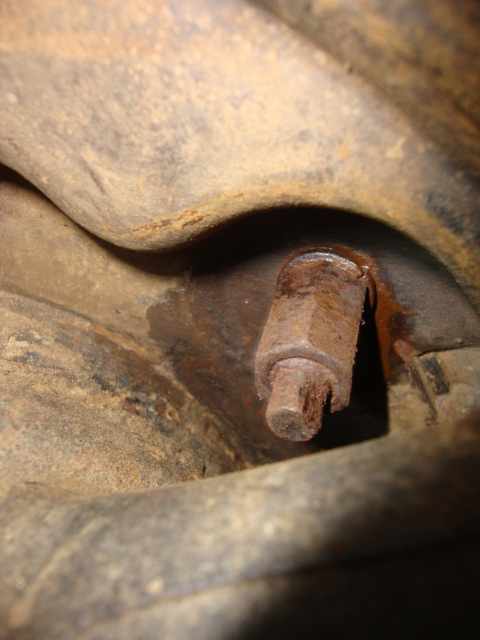

	Number 5 of 8.

	IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #17 - 08/17/12 at 23:14:09	Print Post

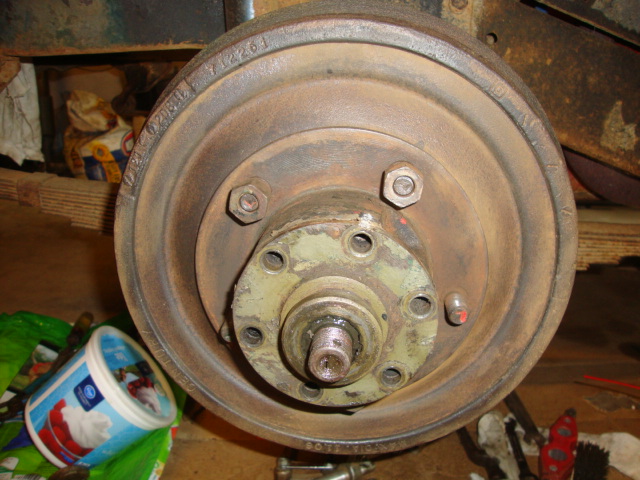

	Number 6 of 8.

	IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #18 - 08/17/12 at 23:14:45	Print Post
	Number 7 of 8.

	IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #19 - 08/17/12 at 23:16:00	Print Post
	Number 8 of 8....there has to be a better way of doing this...right?

	IP Logged

Bob W Flatfender Master Owner Member 2012 2016 Sponsor Member Offline Posts: 2159 Location: Monticello, NY Joined: 10/19/10 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #20 - 08/17/12 at 23:55:59	Print Post
	They look like Utility series brakes. Just use Tim and Larry's instructions above excepting there are no anchor adjustments at the bottom.

	Bob W
	WWW IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #21 - 08/18/12 at 00:50:15	Print Post
	So the brakes are used on trailers etc. and not specifically designed for use on Jeep vehicles? Should I cut the eccentric bolts with a torch if they wont loosen up? I've been trying to free the stud from the bolt and so far it all turns together.


	IP Logged

rocketeer Flatfender Master Offline Support Our Troops. Posts: 1328 Location: Lehighton, PA Joined: 10/31/10 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #22 - 08/18/12 at 00:57:51	Print Post
	Quote: I think the 11" brakes that Charles has on his Jeep are the type that only have the "Eccentric" adjusters and not the "Anchor Pin" adjusters. On this type the bottom of the brake shoes are free to slide up and down on the lower anchor, eliminating the need for adjustment there. More photos would be necessary to know for sure. OK, got it. Hard to tell from the photos. Larry

	http://www.enter.net/~rocketeer/13thaaf/13thmain.html&&;
	IP Logged

Bob W Flatfender Master Owner Member 2012 2016 Sponsor Member Offline Posts: 2159 Location: Monticello, NY Joined: 10/19/10 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #23 - 08/18/12 at 01:07:21	Print Post
	minton wrote on 08/18/12 at 00:50:15: So the brakes are used on trailers etc. and not specifically designed for use on Jeep vehicles? They look like Jeep brakes. Utility series are Wagons and Pickups minton wrote on 08/18/12 at 00:50:15: Should I cut the eccentric bolts with a torch if they wont loosen up? Heat from a torch will probably free them up without cutting. minton wrote on 08/18/12 at 00:50:15: I've been trying to free the stud from the bolt and so far it all turns together. As long as the "stud" is turning the adjustment is happening. As you turn the stud rotate the brake drum. You should notice the brake drag changing.

	Bob W
	WWW IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #24 - 08/18/12 at 01:32:55	Print Post
	That will be my weekend project...Thanks Bob.


	IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #25 - 08/18/12 at 21:54:35	Print Post

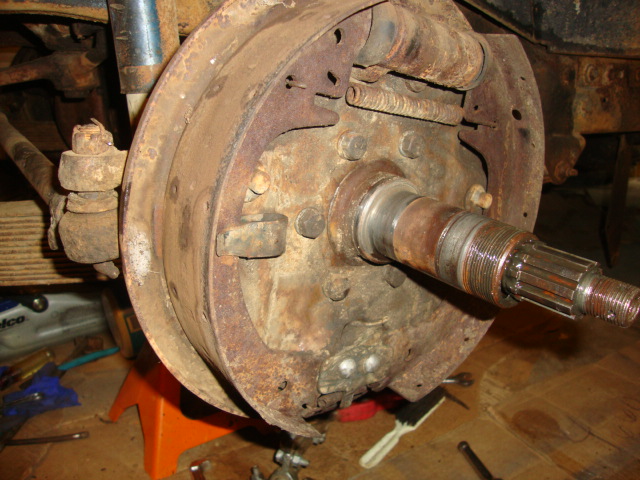

	I removed drivers side front and these are photos of it:

	IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #26 - 08/18/12 at 21:56:00	Print Post

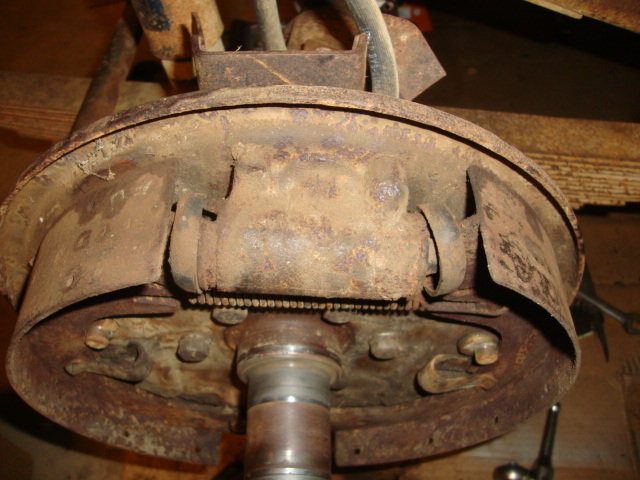

	Picture two

	IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #27 - 08/18/12 at 21:56:49	Print Post
	Number 3

	IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #28 - 08/18/12 at 21:57:56	Print Post
	Four of Five.

	IP Logged

minton Flatfender Enthusiast Offline Remember our heritage....it came at a high price! Posts: 127 Location: Jackson, MS. Joined: 07/02/12 Gender:	Re: Pulling/removing Brakes Drums on CJ3a/CJ Reply #29 - 08/18/12 at 21:58:52	Print Post
	Number 5

	IP Logged
